This puzzle opens the door to exploring the unique and purposeful design of the F-theta lens.

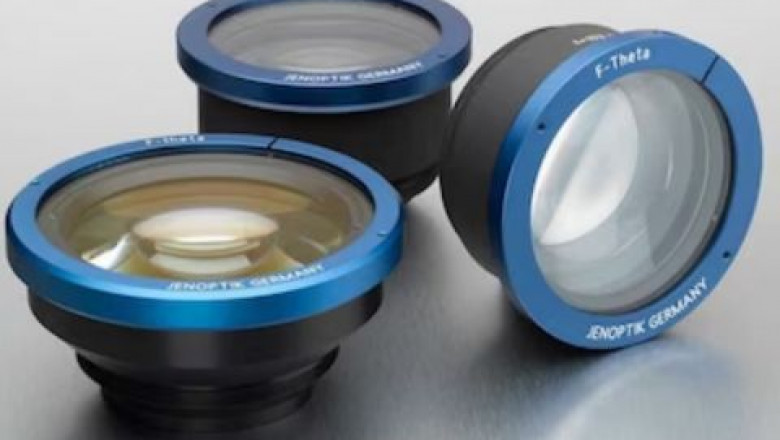

What is an F-theta Lens?
An F-theta lens—sometimes called a scan lens or field lens—is an optical device primarily used in galvanometer-based laser scanning systems. Its main function is to ensure that the laser beam, after deflection by mirrors (usually in X and Y axes), lands precisely on a flat field like a worktable or substrate, maintaining uniformity across the field.
The term “F-theta” comes from the mathematical function it approximates. In simple terms, for a given angle theta of the deflected beam, the position of the spot on the surface should ideally follow the equation:
Position = f × θ,
where f is the focal length and θ is the scan angle. This design ensures that beam positioning remains linear with respect to the input angle, a key to achieving precision over a flat working field.
Why is Beam Flattening Necessary?
Without a field-flattening lens like the F-theta lens, laser beams deflected by galvanometric mirrors would hit a curved focal surface. That’s a natural result of how optics work; the beam would focus perfectly at the center but diverge or misalign at the edges of the working area. This curvature leads to inconsistent engraving, marking, or welding depth across the surface. For applications that require uniform interaction across a flat substrate—like barcoding metal parts or etching circuit boards—this inconsistency is unacceptable.
The Optical Trick Behind the F-theta Lens
So, how does the F-theta lens solve this? The design incorporates one or more aspherical lens elements precisely engineered to compensate for the inherent distortions caused by galvanometric scanning. The lenses adjust the path and focus of the incoming laser beam in such a way that all parts of the beam come into focus on a flat surface.
But this is more than just flattening. The F-theta lens also keeps the spot size consistent across the entire field. This is vital because the laser’s power density (energy per area) must remain stable to ensure uniform results, whether you are cutting, welding, or marking.
Applications Across Industries
The utility of the F-theta lens spans several industries where precision laser application is central:
-
Laser Marking Systems: These systems rely on exact positioning of laser beams to engrave text, barcodes, or designs on surfaces like metals, plastics, ceramics, or glass. A F-theta lens ensures that each mark, regardless of its position on the working field, is consistent in depth and shape.
-
PCB and Semiconductor Fabrication: In electronics manufacturing, detailed circuit patterns are applied using laser etching. The F-theta lens helps deliver the necessary micrometer precision.
-
3D Printing and Additive Manufacturing: Certain types of 3D printers use lasers to sinter or fuse materials. The lens helps maintain focus accuracy during layer formation.
-
Laser Welding and Micromachining: In applications requiring high precision, such as medical device fabrication or jewelry work, an F-theta lens ensures that even intricate, miniature patterns are consistently formed.
-
QR Code and Serial Number Engraving: Mass production facilities use galvanometric systems to mark serials or QR codes at high speed. Without an F-theta lens, variations across the marking field would compromise readability.
Material Considerations
The F-theta lens must be crafted from high-quality optical materials compatible with the laser’s wavelength. For CO₂ lasers (10.6 µm), lenses are typically made of zinc selenide (ZnSe). For fiber lasers and UV lasers, fused silica or other specialty glasses are preferred. The coatings applied to the lens are also crucial—they must maximize transmission at the laser’s wavelength and minimize back-reflection or damage.
How It Works With Galvo Systems
In a typical galvo-based setup, two galvanometer-mounted mirrors control beam deflection. The laser beam enters the system, gets reflected off these mirrors, and is then directed through the F-theta lens onto the work surface.
Here’s the tricky part: as the mirrors tilt, the path length changes, which would normally cause the beam to go out of focus. The F-theta lens compensates for this by bending the incoming light in such a way that all outgoing beams, regardless of angle, converge on a flat plane. That’s where the F-theta function comes into play—mapping angular input into linear spatial output.
This mapping is especially important when working with vector graphic designs or text. Even a small distortion or defocus in a character can result in unacceptable quality for high-end applications.
Choosing the Right F-theta Lens
There isn’t a one-size-fits-all solution. Choosing the right F-theta lens involves several considerations:
-
Focal Length: Determines the size of the working field. A longer focal length gives a larger area but at the cost of slightly lower resolution.
-
Wavelength Compatibility: A lens optimized for 1064 nm (common in fiber lasers) won’t perform correctly with a CO₂ laser.
-
Scan Field Size: Different applications require different sizes—from tiny micro-etching surfaces to large marking fields.
-
Spot Size: Determines the fineness of the laser’s focus. Smaller spot sizes offer higher precision.
Maintenance and Alignment
Proper maintenance of the F-theta lens is critical. Even a small dust particle or scratch can scatter the laser beam, leading to inaccurate or weakened output. It's advised to keep the lens protected from contaminants and clean it using approved optical cleaning methods only.
Moreover, alignment with the scanning mirrors must be exact. Misalignment can negate the precision benefits of the system entirely. Professional calibration and setup, especially in high-value production environments, is a must.
F-theta Lens vs. Telecentric Lens
An interesting topic often brought up in professional settings is the comparison between F-theta lenses and telecentric lenses. While the F-theta lens focuses the beam on a flat plane, the telecentric lens ensures that the beam hits the surface perpendicularly at all points, eliminating angular distortion entirely.
This is especially useful in vision inspection or drilling applications, but telecentric lenses are generally more complex and expensive. For most industrial laser scanning needs, the F-theta lens strikes the right balance between performance and practicality.
Final Thoughts
The F-theta lens is far more than just an accessory in laser systems—it’s the brain that interprets and transforms angular deflections into linear, precise results. Its importance is felt across sectors as diverse as aerospace, electronics, automotive, and consumer goods manufacturing. Whether you're laser-marking a serialized part or engraving intricate designs onto jewelry, this lens ensures that the results are flat, consistent, and repeatable.
Understanding how it works allows businesses and technicians to make informed decisions about their laser equipment. And as laser applications become even more integrated into production and design processes, the F-theta lens will remain a central figure in enabling that precision.
