Optimizing Thick Film Circuits with Laser Trimming and Screen Printing Technology
Explore how laser trimming machines and thick film screen printers enhance thick film heater design. Learn about the thick film technology process for precision electronics manufacturing.

The growing demand for miniaturized, high-performance electronic devices has led to the widespread use of thick film technology in circuit and heater design. This mature yet evolving thick film technology process combines precision screen printing with post-production laser trimming to deliver accurate, compact, and thermally stable components.

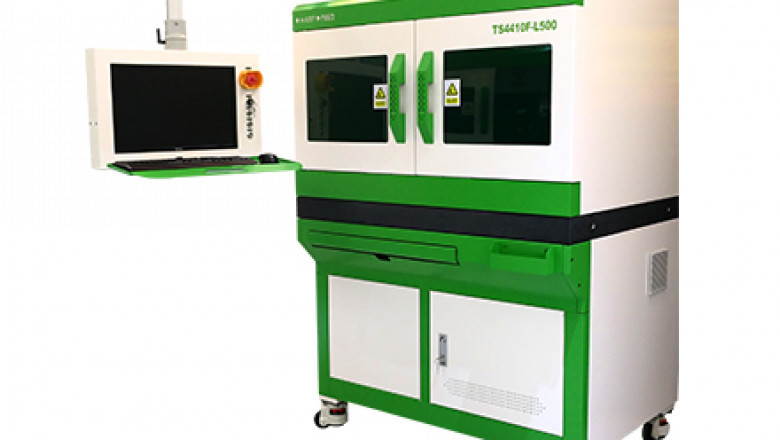

One of the key steps in refining thick film circuits is the use of a laser trimming machine. These machines are specifically designed to adjust the resistance values of printed resistors or heating elements by selectively ablating the conductive or resistive ink layer. In applications like thick film heater design, this ensures the heater delivers uniform temperature output and energy efficiency across its surface.

Prior to trimming, the circuit is formed using a thick film screen printer, which applies conductive pastes, dielectric layers, and resistive inks onto ceramic or stainless-steel substrates. This printing process enables rapid prototyping and scalable production of custom heaters, sensor circuits, and hybrid electronics. The quality of the screen printing directly impacts the success of the laser trimming process.

The thick film technology process typically includes:

  • Substrate cleaning and preparation

  • Screen printing of conductive, resistive, and dielectric layers

  • Drying and firing in a high-temperature oven

  • Laser trimming using a laser trimming machine

  • Electrical testing and quality assurance

By integrating a laser trimming machine into your production line, you can fine-tune resistance or temperature coefficients with incredible precision — often to within ±0.1%. This is especially valuable in thick film heater design, where consistent thermal behavior is critical for applications in automotive defoggers, medical heating pads, and industrial sensors.



In conclusion, combining the benefits of thick film screen printer technology with post-print laser trimming enables manufacturers to build reliable, high-performance electronic components. Whether you’re designing complex hybrid circuits or custom heating elements, the synergy between screen printing and trimming provides both flexibility and precision.

Looking to enhance your thick film production?
Explore the latest laser trimming machine options and improve yield, accuracy, and product reliability in your thick film technology process.
